Tribli provides an extremely fast approach to the structural design of multi-storey concrete structures. Models can be imported directly from PDF documents, with all column and wall loads provide within minutes

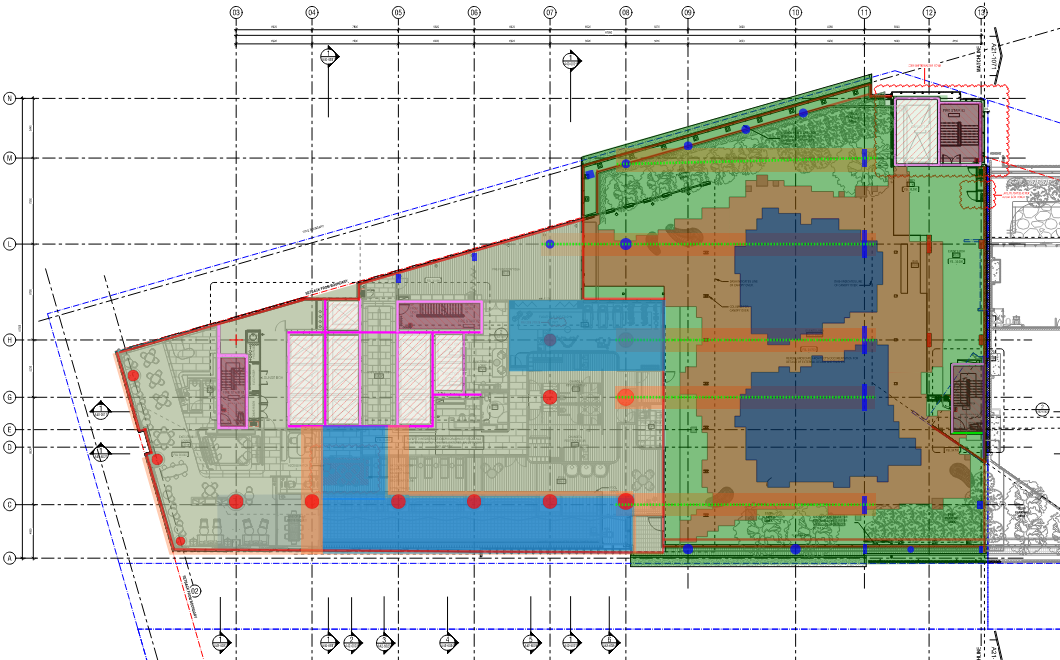

Using simple PDF markups from industry standard markup software (such as Bluebeam Revu), structural elements can be traced over architectural or structural CAD backgrounds for extremely fast data input.

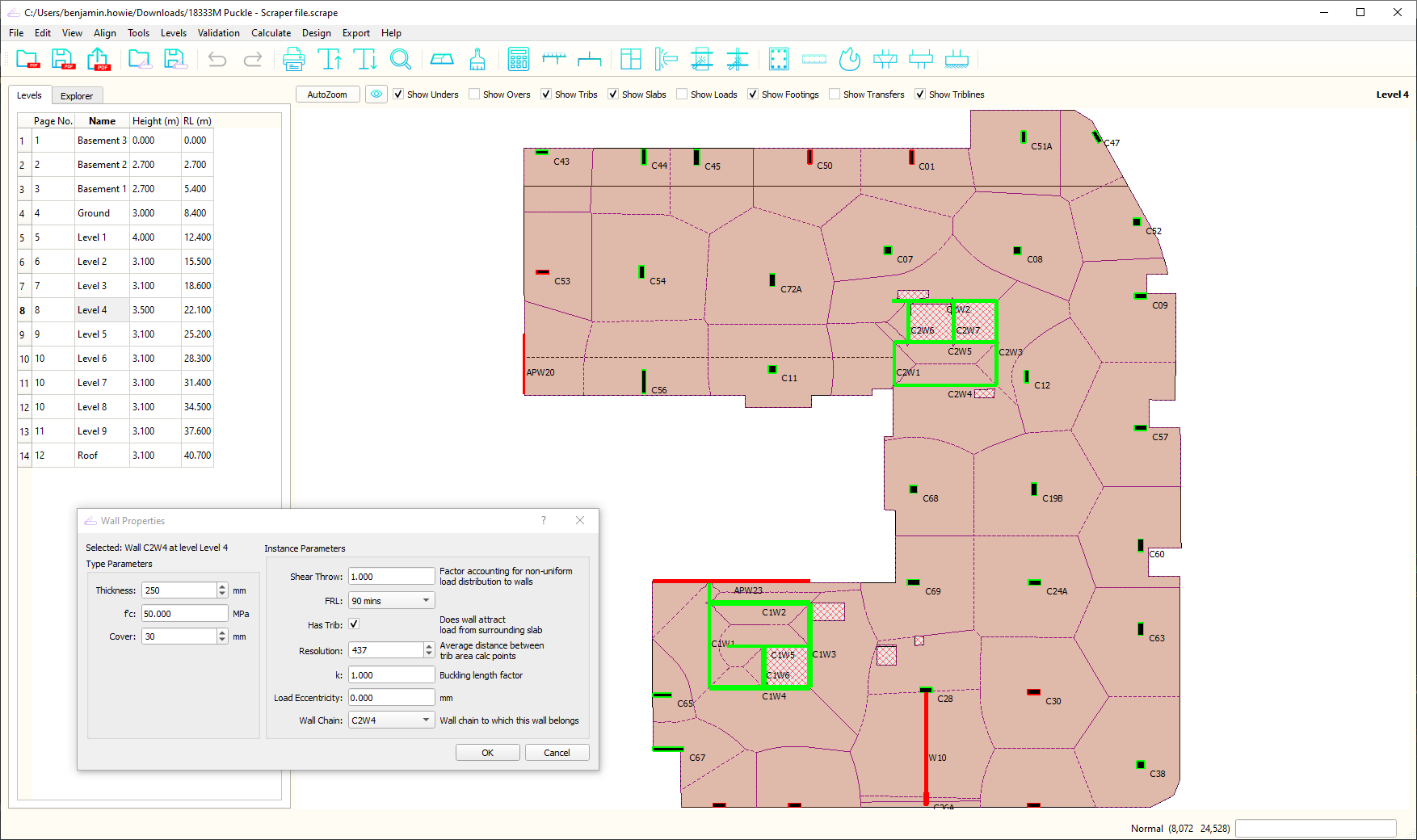

One-click generation of column and wall tributary areas. A modification ('shear throw') factor that accounts for elastic load distribution can be automatically generated and truncated to account for pattern loading effects.

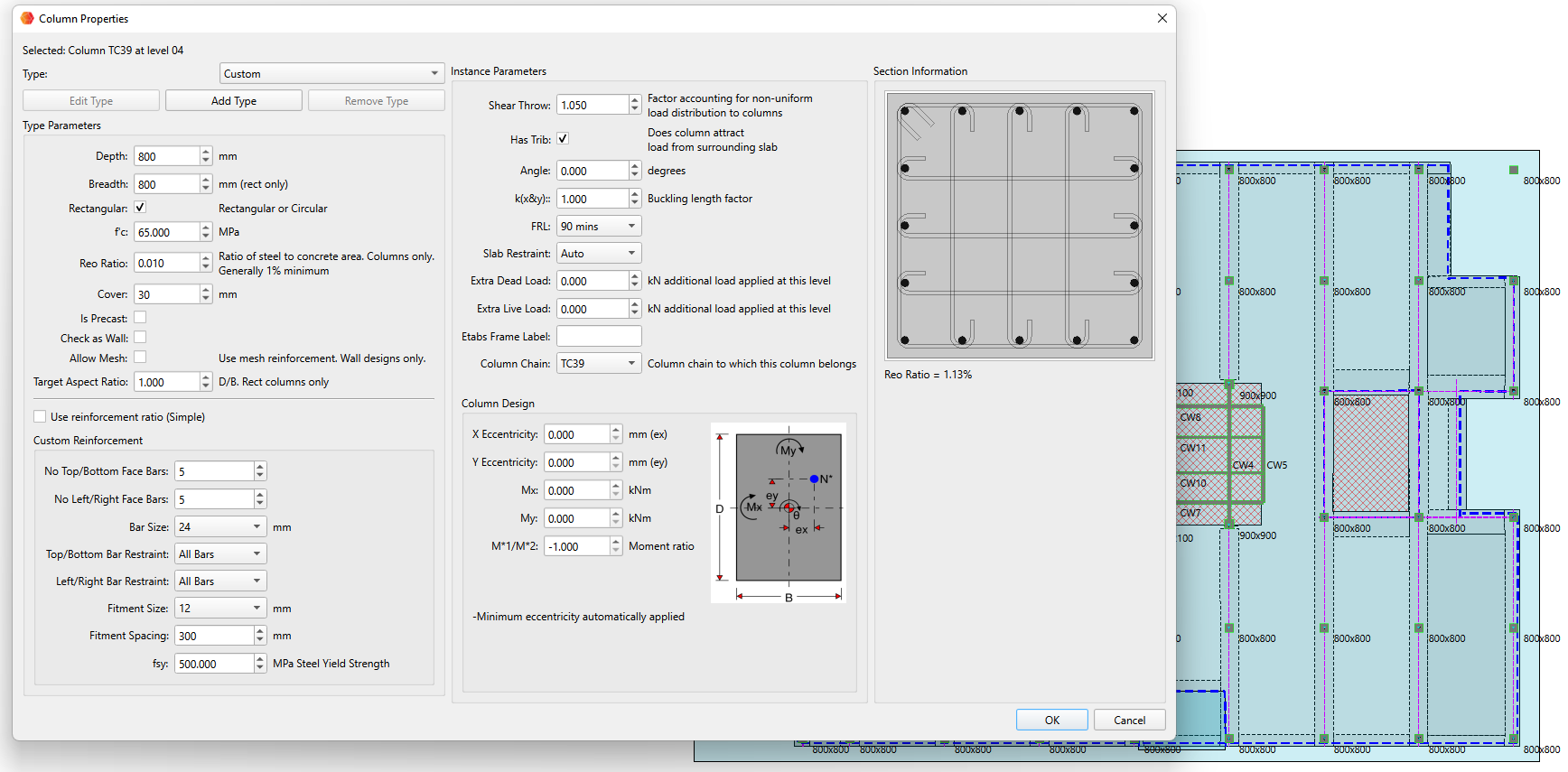

Full support for structural concrete column, wall, strip and pad footing design and optimisation to AS3600:2018.

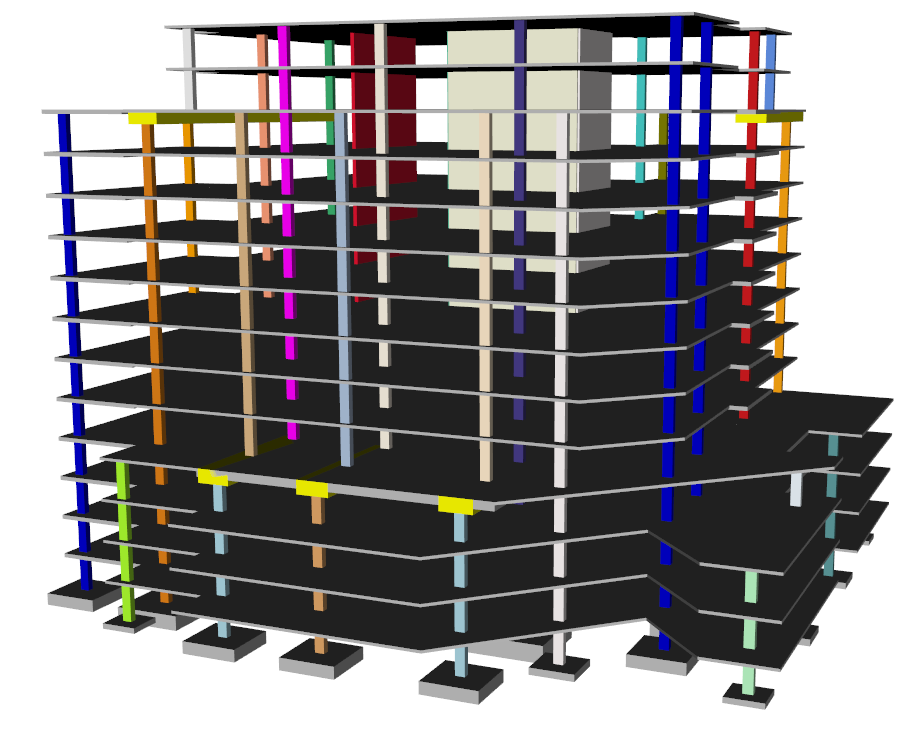

Rapidly visualise your structure in 3D to simplify design and to provide quick, visual feedback to clients and architects.
Seemlessly export your structural model to software packages such as Etabs, RAM Concept and SAFE, as well a huge range of tabular export options. Models can also be imported from Etabs to assist in model checking.
Visit the Tribli help page to learn more.
Alternatively, watch the videos below for a demonstration of the basics of Tribli.
Currently only Windows 10 & 11 64-bit installations are officially supported. We hope to add support for other platforms in the near future.
Efficus offers 60 day trial licenses for all of our products, including Tribli.
Enter your details to try it out!
